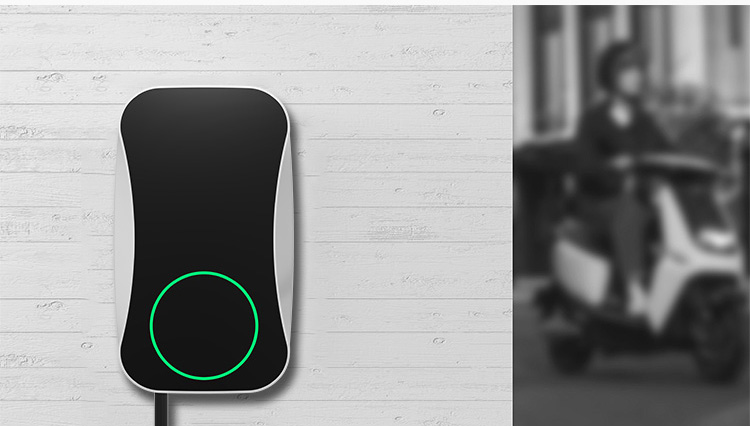

22kw 3 Phase Type 2 AC EV Charger Wallbox Electric Vehicle Charging Station
[Intelligent control]
Support for multiple communications (WI-FI, 4G, Ethernet)
Meet the OCPP1.6J protocol, Tuya APP
Home load balancing control, (remote wireless transmission
current signal)
Balancing load control of new solar energy
[Flexible options]
Type 2 connector
Meet the wall installation and column landing installation
The multi-wire installation solution meets the requirements of
different scenarios
APP/Plug & Charge multi-charge mode is optional
|
Model
|
EVC1L-3210A |
|
Power
|
7.4KW |
|
Power Supply
|
1P+N+PE |
|
Rated Voltage
|
AC220~240V |
|
Rated Current
|
32A(16A ,13A,10Aadjustable) |
|
Output Voltage
|
AC220~240V |
|
Maximum Current
|
32A(16A ,13A,10Aadjustable) |
|
Rated Power (MAX)
|
7.4KW |
|
Charger Connecter
|
Cable (TPU)+plug |
|
Cable Length
|
5M |
|
Material
|
ABS +PC |
|
Color
|
white + black |
|
Ingress Protection
|
IP65 |
|
Certification
|
CE /UCKA (Dekra) |
|
Certification Standard
|
EN IEC 61851,EN 62196 |
|
Installation
|
Wall mounted |
|
Work Temperature
|
‘-25ºC~50ºC |
|
Work Humidity
|
3%~95% |
|
Work Altitude
|
<2000m |
|
Procduction Dimension (H*W*D)mm
|
350*200*105 |
|
Package Dimension (L*W*H)mm
|
485*375*155 |
|
Net Weight (KG)
|
3.96 |
|
Gross weight (KG)
|
4.96 |
