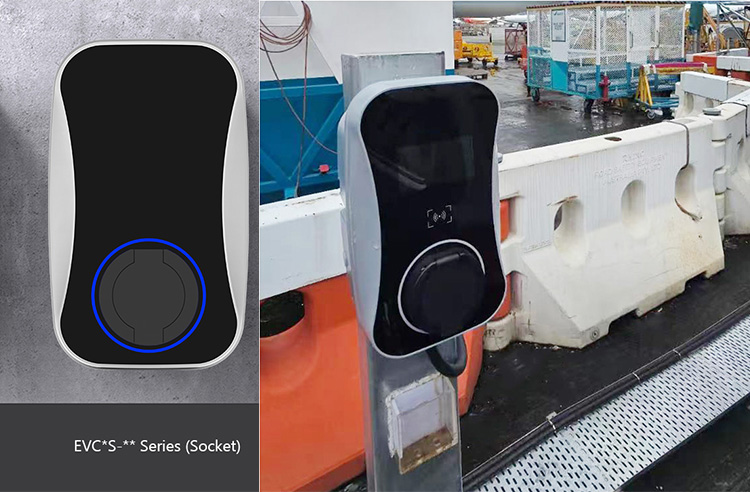

32A Home Evse Wallbox 7kw AC EV Charger Type 2 Convenient Charging Station
This European standard AC charging pile is a new generation of high-end smart charging products launched for the overseas market.It supports power options of 7kW, 11kW, and 22kW, with stable product performance. It supports 4G/5G communication and the platform protocol supports OCPP1.6J.It has various charging initiation methods and also supports custom feature development.This series of products is highly integrated, compact, with an exquisite appearance, easy to install and inspect, and convenient to maintain, making it suitable for various parking locations that require AC charging.
|
Model
|
EVC1S-3210
|
|
Power
|
7.4KW
|
|
Power Supply
|
1P+N+PE
|
|
Rated Voltage
|
AC220~240V
|
|
Rated Current
|
32A(16A ,13A,10A adjustable)
|
|
Output Voltage
|
AC220~240V
|
|
Maximum Current
|
32A(16A ,13A,10A adjustable)
|
|
Rated Power (MAX)
|
7.4KW
|
|
Charger Connecter
|
Type 2/T2S Socket
|
|
Cable Length
|
NO
|
|
Material
|
ABS +PC
|
|
Color
|
White + Black
|
|
Ingress Protection
|
IP54
|
|
Residual Current Protection
|
AC30mA& DC6mA
|
|
Certification
|
CE/ CB/ UKCA (Dekra)
|
|
Certification Standard
|
EN IEC 61851, EN 62196
|
|
Installation
|
Wall Mounted
|
|
Work Temperature
|
-25ºC~50ºC
|
|
Work Humidity
|
3%~95%
|
|
Work Altitude
|
<2000m
|
|
Procduction Dimension (H*W*D)mm
|
330*200*109
|
|
Package Dimension (L*W*H)mm
|
390*260*165
|
|
Net Weight (KG)
|
2.1
|
|
Gross weight (KG)
|
2.5
|
|
External Carton Loading Capacity
|
4 unit in one box
|
