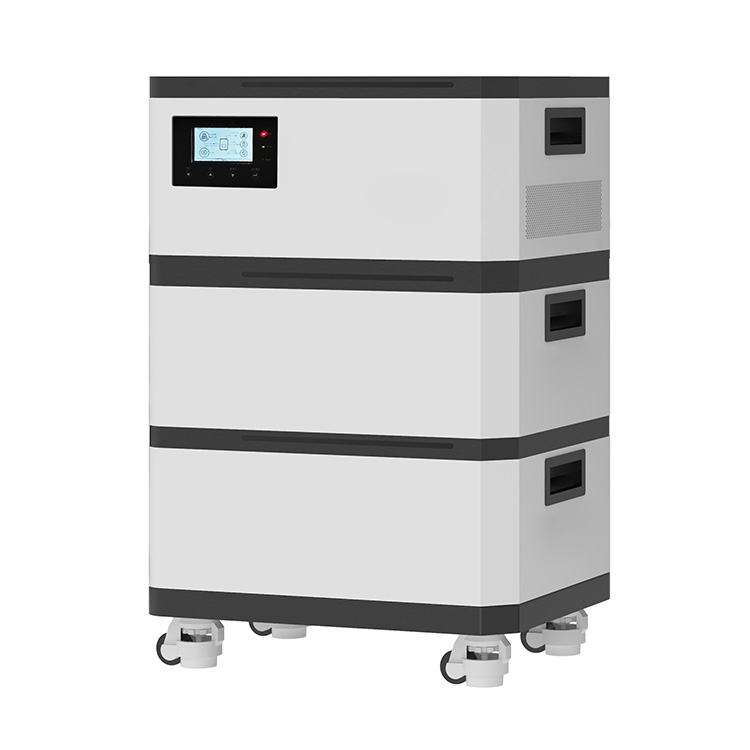

5kwh Residential Lithium Battery Energy Storage System Solar Cell for Household

Upgradeable design:

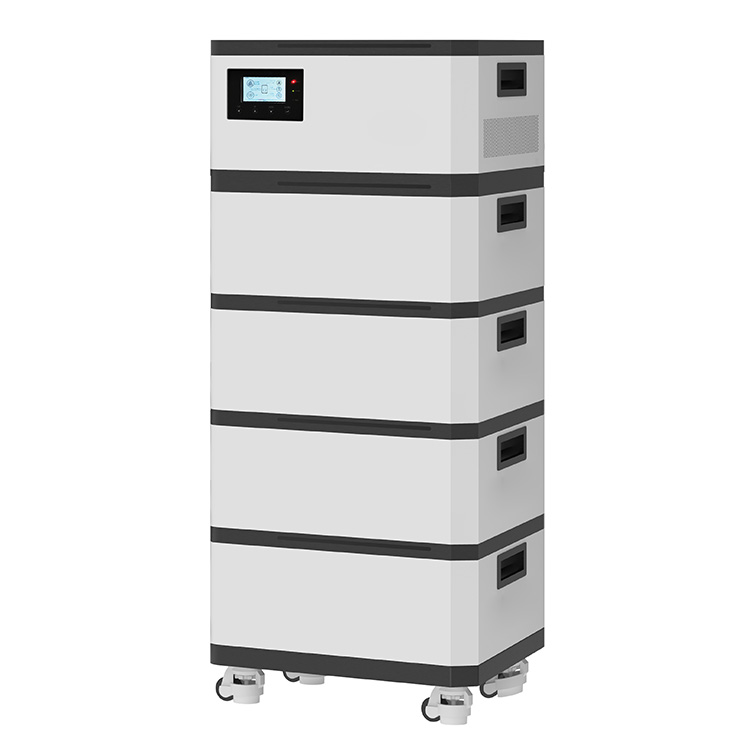

You can start with a single inverter and battery unit and expand your system as your needs grow. Each inverter has a power rating of 6 kW and can be paralleled with up to 3 units for a total of 18 kW. Each battery has a capacity of 5 kWh and can be stacked and paralleled with up to 6 units for a total of 30 kWh.

Single Battery Module Energy: 5.12kwh

Number of Module: 1-4 PCS

Normal Charge/Discharge Current: 50A

Max Charge/Discharge Current: 95A

Optimum Storage Temperature: 25ºC

Battery Heating: 100W

IP Rank: IP65

Protection: Otp, Ovp, Ocp, Uvp

Cooling Type: Self-Cooling

Send email to us

Product Detail

Pillar EV Charger

AC EV CHARGER-7.4KW

DC EV CHARGER

Product Tags

Plug and play:
Our system does not require any matching or commissioning. Just connect the inverter and battery units with the included cables and you are ready to go. The system will automatically detect and synchronize the units for optimal performance.

Smart management:
You can monitor and control your system from anywhere with our user-friendly app.

You can check the status of your system, adjust the settings, and view the historical data. You can also set up alerts and notifications to keep you informed of any issues or events.

MODEL NO.	XB(HH51B) Single-Phase
Single Battery Module Energy	5.12KWh
Number of Module	1-4 Pcs
Rated Voltage	51.2V
Operating Voltage	40-58.4V
Normal Charge/Discharge Current	50A
Max Charge/Discharge Current	95A
Pack Impedance Standard	≤10mΩ
Optimum storage Temperature	25ºC
Cycle Life	3000 circles@1C,25ºC(77ºF),DOD80%,EOL80%
Operation Altitude	<3000m
Communication	CAN/RS485
Shipping Capacity	40%~60%@SOC
Protection	OTP,OVP,OCP, UVP
IP Rank	IP65
Battery heating	100W
Cooling Type	self-cooling
Single Battery Main Size(LWH)	610x436x212mm
Single Battery Weight	49kg
