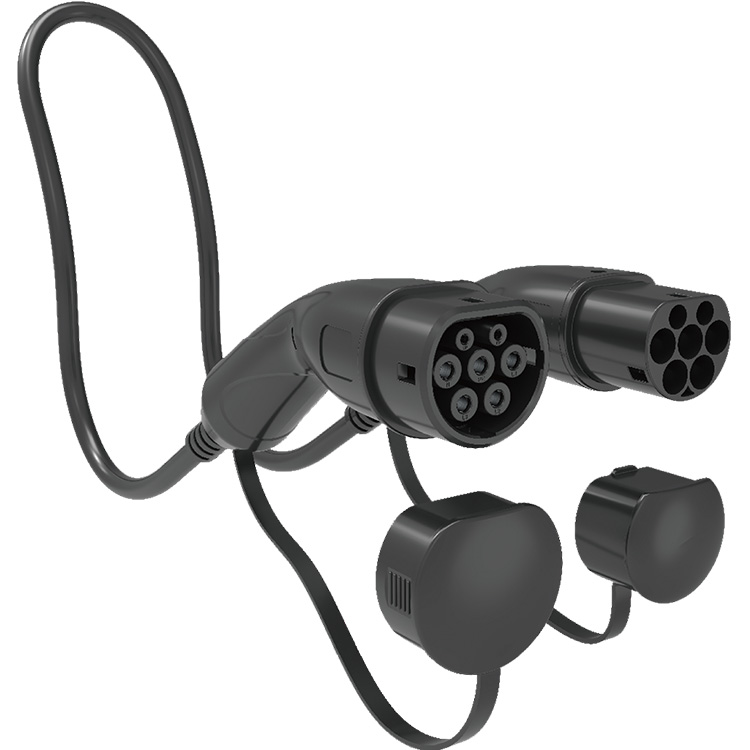

7kw 11kw 22kw 16A 32A Three Phase Type 2 to Type 1EV Charging Cable with IP65 Waterproof TUV and CE for EU Standar


Product Detail

Pillar EV Charger

AC EV CHARGER-7.4KW

DC EV CHARGER

Product Tags

The connector that plugs into the EV is typically located on the charging cord that comes with the vehicle. It is usually a specific type of connector that is designed to fit only the charging port on the vehicle. This connector is typically designed to be weather-resistant and durable, as it will be exposed to the elements when the vehicle is being charged.

9

1 (2)

Self-cleaning
FunctionHardly producing electric sparks.

1 (3)

TPU MaterialLong service life, Easy to bend and fold.

1 (4)

Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are;

1 (5)

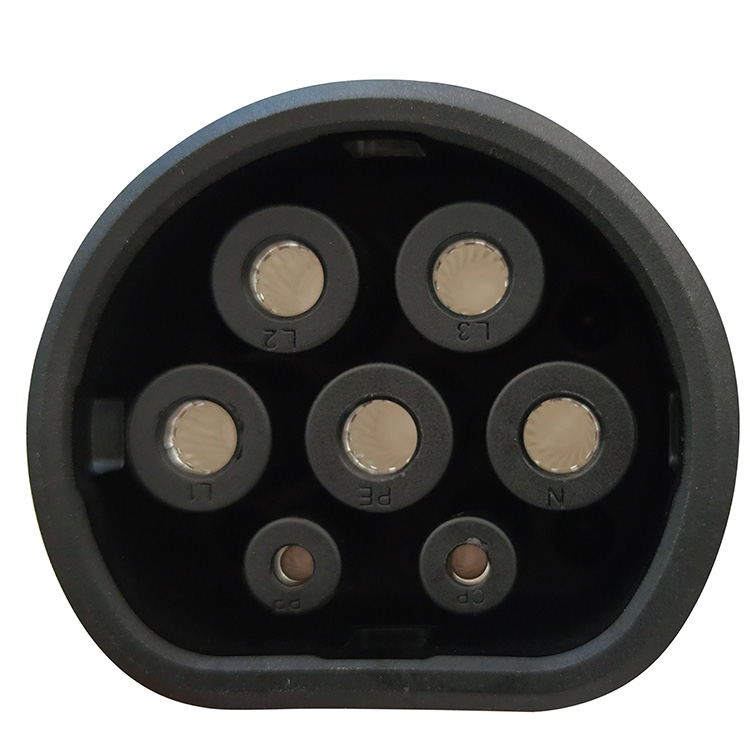

Copper Alloy PinCoated with Pure SilverProtected by Thermoplastic

Type XBDC-ev32
MOQ(PCS) 100
The main material TPU
Plug color White/Black/Other
Ptach life >=10000
Rated Current 32A 3P/1P
Fire Rating UL94 V-0
Rated Voltage AC 220V~250V
Waterproof rating IP54
Resistance Voltage 2000V
Operating Temperature -30ºC~50ºC
Insulation resistance >1000MΩ
Cable Specification 3*6mm²+2*0.5mm²
Contact Resistance Less than 0.5mΩ
Certification CE
Cable Length 5M /other
Net/gross weight (kg) 3.61kg/4.43kg
Packaging single color box
Packaging dimension  mm 380*380*120

产品详情修改-恢复的_14产品详情修改-恢复的_15



产品详情修改_01产品详情修改_021 (1)1 (2)1 (3)1 (5)1 (6)1 (4)1 (9)1 (10)1 (11)

9未标题-1-恢复的-拷贝_02未标题-1-恢复的-拷贝_03未标题-1-恢复的-拷贝_04未标题-1-恢复的-拷贝_05未标题-1-恢复的-拷贝_06未标题-1-恢复的-拷贝_07未标题-1-恢复的-拷贝_08未标题-1-恢复的-拷贝_09未标题-1-恢复的-拷贝_10未标题-1-恢复的-拷贝_11未标题-1-恢复的-拷贝_12未标题-1-恢复的-拷贝_13未标题-1-恢复的-拷贝_14未标题-1-恢复的-拷贝_17未标题-1-恢复的-拷贝_18

1 (1)1 (2)1 (3)1 (4)1 (5)1 (6)1 (7)1 (8)1 (9)1 (10)1 (11)
