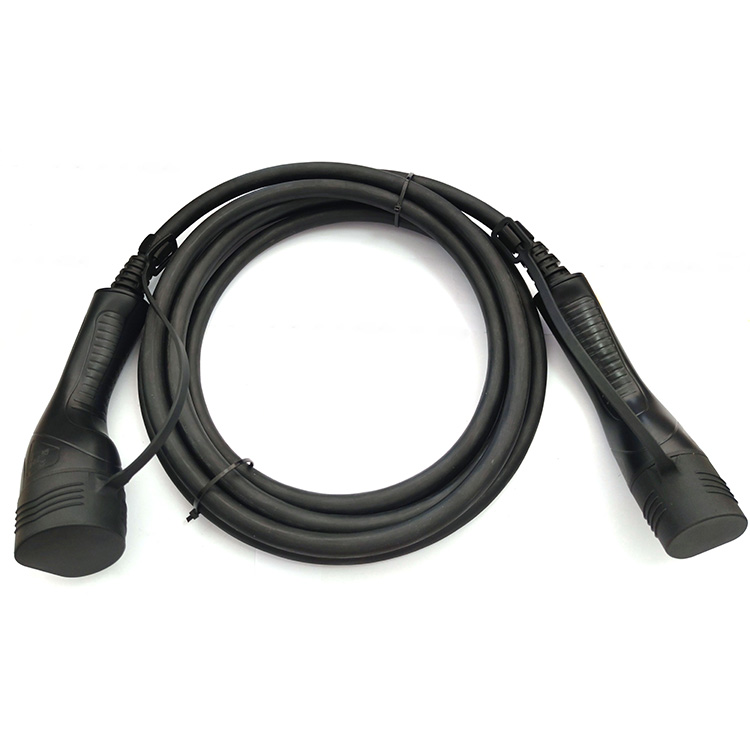

AC European Standard Type2 32A 7kw 11kw 22kw EV Charging Pile Electric Car Charging Station Connection Cable

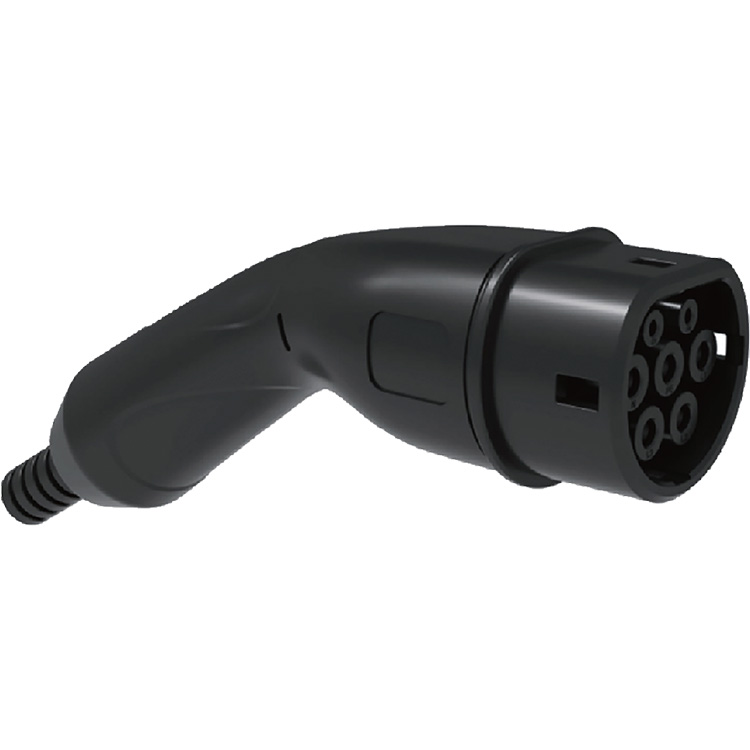

The connector that plugs into the EV is typically located on the charging cord that comes with the vehicle. It is usually a specific type of connector that is designed to fit only the charging port on the vehicle. This connector is typically designed to be weather-resistant and durable, as it will be exposed to the elements when the vehicle is being charged.
Self-cleaning
FunctionHardly producing electric sparks.
TPU MaterialLong service life, Easy to bend and fold.
Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are

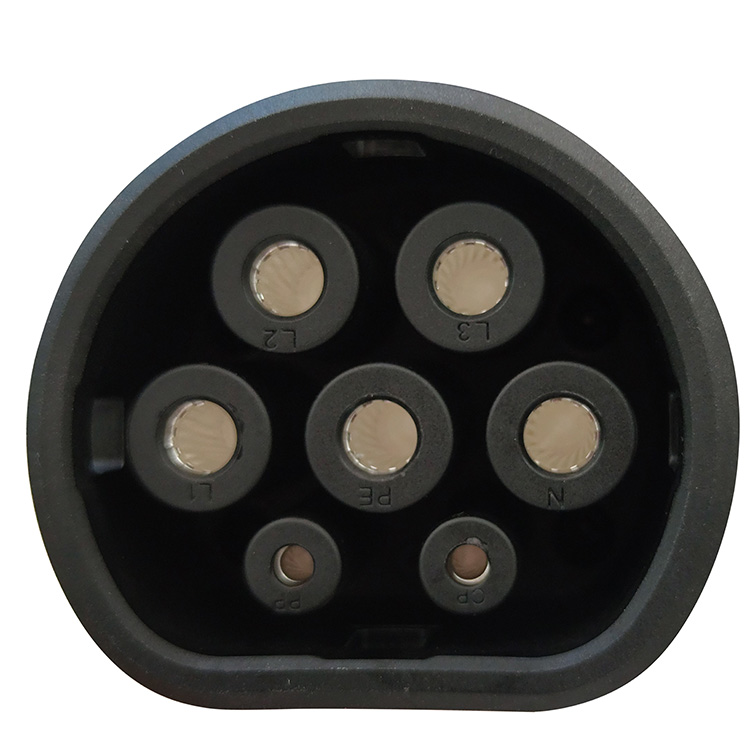

Copper Alloy PinCoated with Pure SilverProtected by Thermoplastic
| Type | XBDC-ev32 |
| MOQ(PCS) | 100 |
| The main material | TPU |
| Plug color | White/Black/Other |
| Ptach life | >=10000 |
| Rated Current | 32A 3P/1P |
| Fire Rating | UL94 V-0 |
| Rated Voltage | AC 220V~250V |
| Waterproof rating | IP54 |
| Resistance Voltage | 2000V |
| Operating Temperature | -30ºC~50ºC |
| Insulation resistance | >1000MΩ |
| Cable Specification | 3*6mm²+2*0.5mm² |
| Contact Resistance | Less than 0.5mΩ |
| Certification | CE |
| Cable Length | 5M /other |
| Net/gross weight (kg) | 3.61kg/4.43kg |
| Packaging | single color box |
| Packaging dimension mm | 380*380*120 |
