11 kw EV Charger Wallbox EV Charger Electric Vehicle Charging Station

#Wall ev charger level 2 11kw type 2 ev portable charger, ev wall charger 11kw type 2 , 3 phase #ev home charger 11 kw charging station, smart ev charger type2 11kw wi-fi, #ev charger 11 kw type 2 porable, china manufacturer electric cars ev car charger




  • Product Dimension: 330*200*109mm
  • Product Material: ABS+PC
  • Indicator Light: Three colors LED
  • Rated/Maximum Current: 16A (13A,10A adjustable)
  • Charger Connector: Cable Plug
  • Ingress Protection: IP65
  • RCD: AC30mA,DC6mA
  • ADJUSTABLE
    POWER

    Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A – however,

    if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector

    SLEEK&
    COMPLIANT

    Offering a modern and discreet home electric vehicle charging solution

    SAFE AND
    SECURE

    EV charger range are packed with the latest safety features and fully comply with the latest

    Smart Charge Points Regulations including security logs and alerts.

    STRONG
    & DURABLE

    The IP65 weatherproof rated enclosure is made from durable ABS and Polycarbonate ensuring

    it can withstand the harshest of weather conditions for years to come.

    Product Detail

    Pillar EV Charger

    AC EV CHARGER-7.4KW

    DC EV CHARGER

    Product Tags

    EU market hot selling 11kw tethered home charging station CE/UKCA certificateev wall charger

    Specification

    Item

    Datasheeet

    11KW

    Type



    EVC3L-1610

    Input

    Power Supply

    3P+N+PE

    Rated Voltage

    AC380~450V

    Rated Current

    16A (13A,10A adjustable)

    Output

    Output Voltage

    AC380~450V

    Maximum Current

    16A (13A,10A adjustable)

    Rated Power

    11KW (MAX)

    User Interface

    Charger Connecter

    Cable (TPU)+ Plug

    Cable Length

    5M

    Material

    ABS +PC

    Colour

    White + Black

    Three Color Led

    OLED

    Optional

    Start Mode



    Plug in and charge

    Tuya App

     OCPP 1.6 Ethernet

    Card Start

    Optional

    Safety

    Ingress Protection

      IP65

    Impact Protection

    /

    Over Current Protection

    Residual Current Protection        (AC30mA,DC6mA)

    Ground Protection

    Surge Protection

    Over/Under Voltage Protection

    Over Temperature

    Certification

    CE/ UKCA (Dekra)

    Certification Standard

    EN IEC 61851,EN 62196

    Enviroment

    Installation

    Wall Mounted

    Work Temperature

    ‘-25℃~50℃

    Work Humidity

    3%~95%

    Work Altitude

    <2000m

    Package

    Procduction Dimension(H*W*D)mm

    350*200*105

    Package Dimension(L*W*H)mm

    485*375*155

    Net Weight (kg)

    3.92

    Gross Weight (kg)

    4.92

    External container loading capacity

    /

    External Package dimension mm

    /

    Loading Container(20GP/40GP/40HQ)

    1100/2220/2533

    Application

    product-application-1

    Home AC ev charger electric vehicle charging station

    Functions

    EV Charger with smart app operate&ocpp1.6j

    EV Charger with smart app operate&ocpp1.6J

    home-power-load-balancing-management

    Home power load balancing management

    solar-power-load-balancing-management

    Solar power load balancing management

    Accessories

    Type2 Socket/ T2S Socket

    type2-socket
    T2S-socket

    Cable Holder

    holder-plug
    cable

    Type2-Type2/Type2-Type1 Cable

    carrier case1

    Carrier Case

    Usage scenarios

    RV-scenes-using
    scenes-using-1

    Inspection

    Qaulity-Control
    Qaulity-Control-2
    Qaulity-Control-3

    Installation

    1659082455(1)

    We will provide use manual and our engineer also will guide installation through video

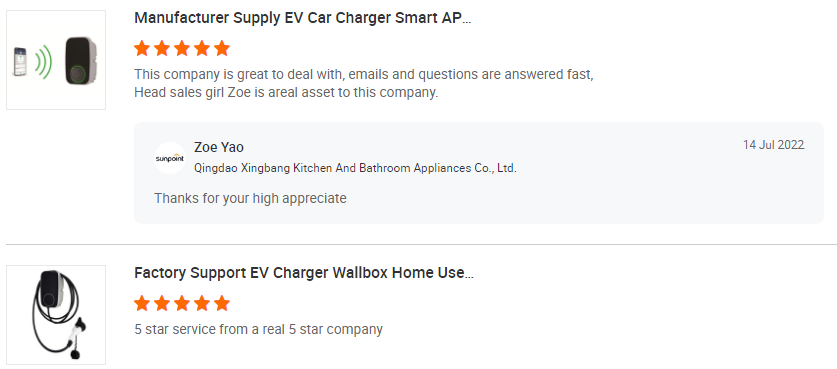

    Customer Feedback

    FAQ:

    1.Are you manufacturing factory?---Yes, we’re XingBang Group who have three manufacturing factories and also have relevant factory certificates.

    2.Can I get one sample for testing?---Yes, we can provide sample to you for testing. Sample fee will charge double fee, but the extra cost will return when first bulk order.

    3.Can you print my logo on ev charger?---Yes, we can do oem according to your requirements for bulk order.

    4.What’s your MOQ?---100pcs

    5.Could you give solution for my project?---Yes, we have professional technical team and developping team, we will provide one-way solution to you.

    6.How long delivery time: first order need about 45days after received deposite and next orders will be about 30days.

    7.Does ev charger has O-PEN protection system.---We can add this function if you required.

    8.Does ev charger has the RCD protection?---AC30mA+DC6mA

    Certification

    Product certification

    CB
    CE
    OD-2020-F1

    The factory qualification

    ISO9001
    ISO14001
    ISO45001
