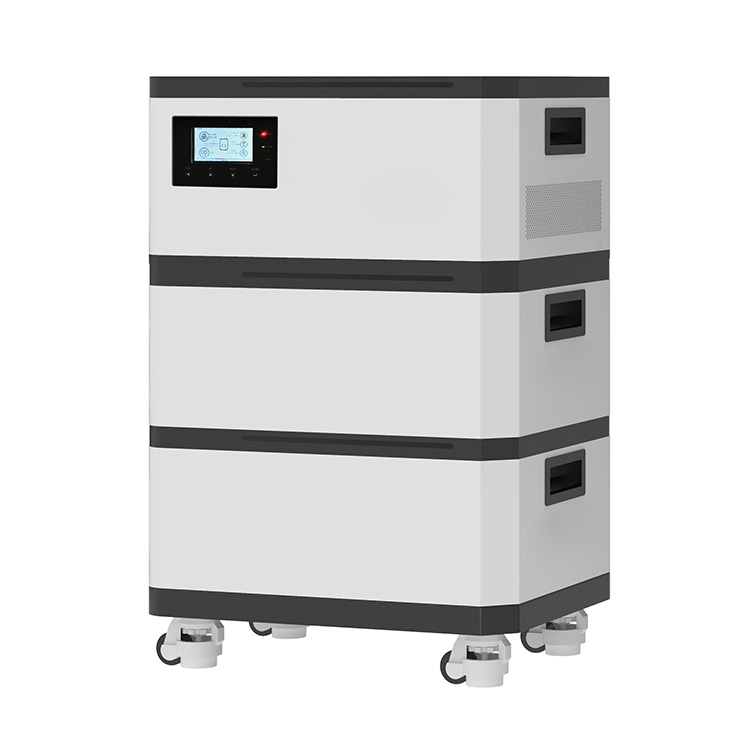

Residential Stacked All-in-One 5kwh Household Energy Storage Battery/System/Solutions

You can start with a single inverter and battery unit and expand your system as your needs grow. Each inverter has a power rating of 6 kW and can be paralleled with up to 3 units for a total of 18 kW. Each battery has a capacity of 5 kWh and can be stacked and paralleled with up to 6 units for a total of 30 kWh.


  • Single Battery Module Energy: 5.12kwh
  • Number of Module: 1-4 PCS
  • Normal Charge/Discharge Current: 50A
  • Max Charge/Discharge Current: 95A
  • Optimum Storage Temperature: 25ºC
  • Battery Heating: 100W
  • IP Rank: IP65
  • Protection: Otp, Ovp, Ocp, Uvp
  • Cooling Type: Self-Cooling
  • Product Detail

    Pillar EV Charger

    AC EV CHARGER-7.4KW

    DC EV CHARGER

    Product Tags

    Plug and play:
    Our system does not require any matching or commissioning. Just connect the inverter and battery units with the included cables and you are ready to go. The system will automatically detect and synchronize the units for optimal performance.

    1 (4)

    Smart management:
    You can monitor and control your system from anywhere with our user-friendly app.

    You can check the status of your system, adjust the settings, and view the historical data. You can also set up alerts and notifications to keep you informed of any issues or events.
    MODEL NO. XB(HH51B) Single-Phase
    Single Battery Module Energy 5.12KWh
    Number of Module 1-4 Pcs
    Rated Voltage
    51.2V
    Operating Voltage 40-58.4V
    Normal Charge/Discharge Current 50A
    Max Charge/Discharge Current 95A
    Pack Impedance Standard ≤10mΩ
    Optimum storage Temperature 25ºC
    Cycle Life 3000 circles@1C,25ºC(77ºF),DOD80%,EOL80%
    Operation Altitude <3000m
    Communication CAN/RS485
    Shipping Capacity  40%~60%@SOC
    Protection OTP,OVP,OCP, UVP
    IP Rank IP65
    Battery heating 100W
    Cooling Type self-cooling
    Single Battery Main Size(L*W*H) 610x436x212mm
    Single Battery Weight 49kg
