Smart Type 2 22kw Double EV Charging Station EV Charger Type 2 2×22 Charging Stations

INNOVATIVE

Ergonomic shell design and human body design Optional T2S socket design A variety of configuration optional LCD screen, RFID

Our electric vehicle charger series products support OEM and ODM. As the current main R&D project, charging piles meet global market needs and have achieved good feedback in the international market. The electric vehicle charger series has CE, CB, UKCA, ETL, OCA and other relevant certifications, meeting the standards of multiple market regions such as Europe, North America, the Middle East, and South America.


  • Type: Fast EV Charging Station
  • Certification: CE
  • Warranty: 12 Months
  • After-Sales Service: Free Accessories
  • Current: 10A/13A/16A/32A Adjustable
  • RCD: RCD
  • Function: Fast Charging
  • Application: AC Home Charging
  • Feature: Over-Voltage Protection
  • Universal charging Type 2 socket
    Power rating – Up to 7.4kW or 22kW models
    Adjustable power rating-10A, 13A, 16A & 32A
    Smart Wi-Fi APP
    Scheduled /off-peak charging
    Solar compatible
    PEN fault and residual current protection (AC 30mA Type A, DC 6mA)
    Dynamic load balancing (CT clamp(s) & cable(s) included)
    OCPP 1.6J
    Built-in LED charging status indicator
    UK Smart Charge Point Regulations Compliant
    including tamper security
    Wi-Fi / Ethernet connectivity
    IP54 & IK08 rated

    Product Detail

    Pillar EV Charger

    AC EV CHARGER-7.4KW

    DC EV CHARGER

    Product Tags

    91 (2)

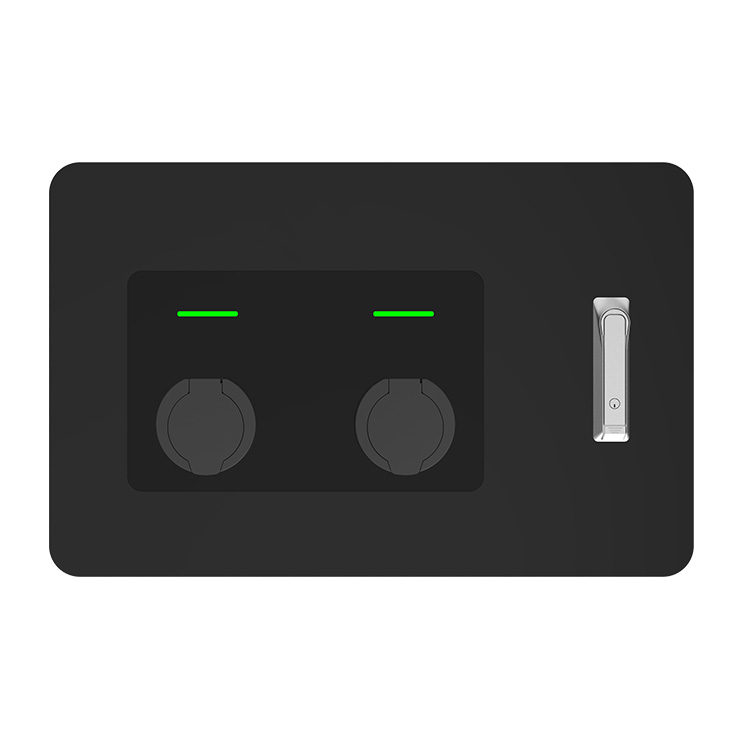

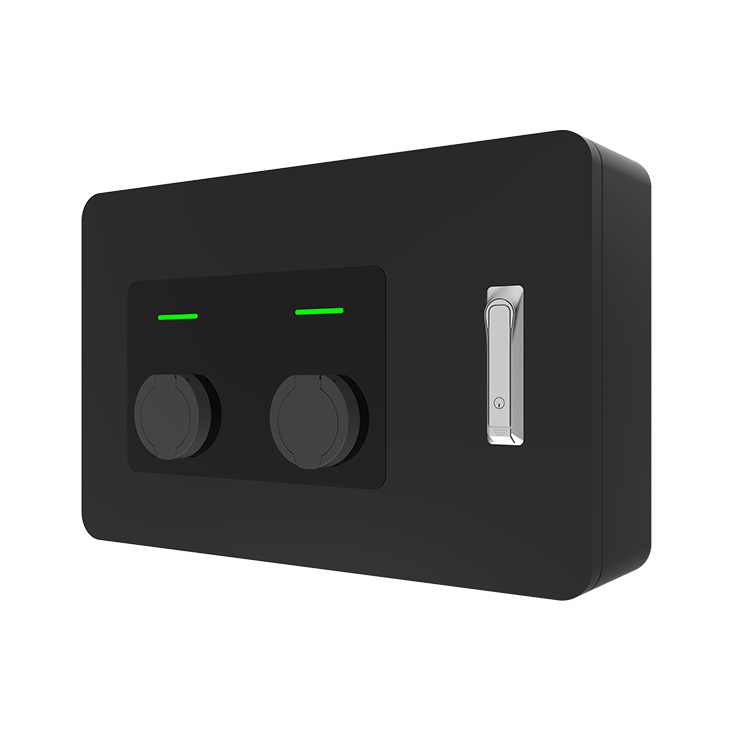

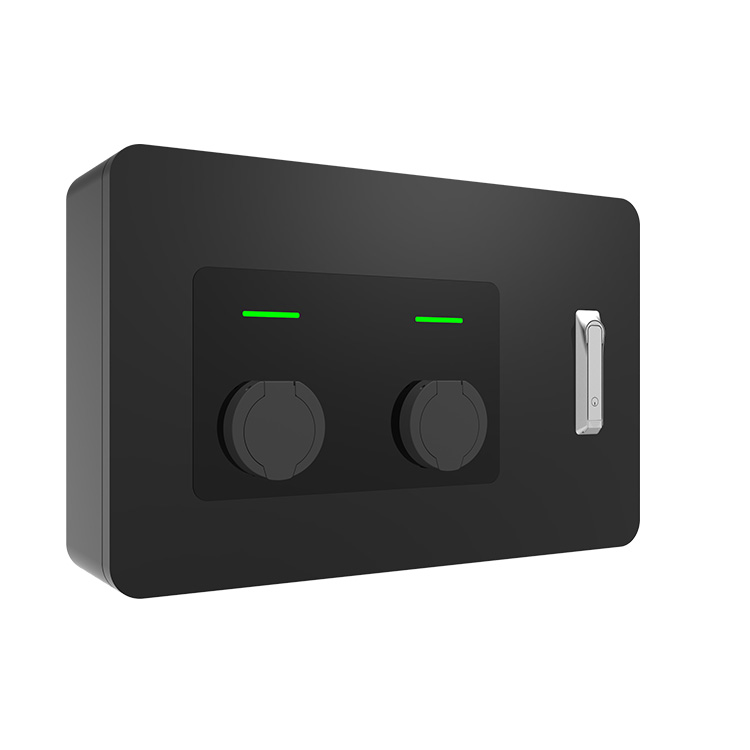

    Dual EV charger with two charging points with models providing up to 22kW , these intelligent, modern yet low-cost units have
    been designed to provide electric vehicle drivers with an affordable charging solution, without compromising on quality.
    Compatible not only with all EVs and PHEVs on the market, but also with solar power. Smart app gives you full control of your
    charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your
    energy usage and much more.

    1 (3)

    ADJUSTABLE

    POWER
    Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A – however, if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector
    1 (1)
    SLEEK&

    COMPLIANT
    Offering a modern and discreet home electric vehicle charging solution, that’s compatible with all EVs and PHEVs on the market, provided that you have the corresponding cable to plug in
