Type 2 Socket Dual EV Charger IP54 EV Charger 7kw 32a EV Charger Station with OCPP 1.6J

Our electric vehicle charger series products support OEM and ODM. As the current main R&D project, charging piles meet global market needs and have achieved good feedback in the international market. The electric vehicle charger series has CE, CB, UKCA, ETL, OCA and other relevant certifications, meeting the standards of multiple market regions such as Europe, North America, the Middle East, and South America.

AC Power: 1P+N+PE

Rated Current: 2*32A(16A ,13A,10A10A adjustable)

Keyword: AC EV Charger

Function: Fast Charging

Application: AC Home Charging

Material: ABS+PC

Key Words: ev charger type 2 2x22

Charging Standard: IEC 62196-2 (Type 2)

Feature: Over-voltage Protection

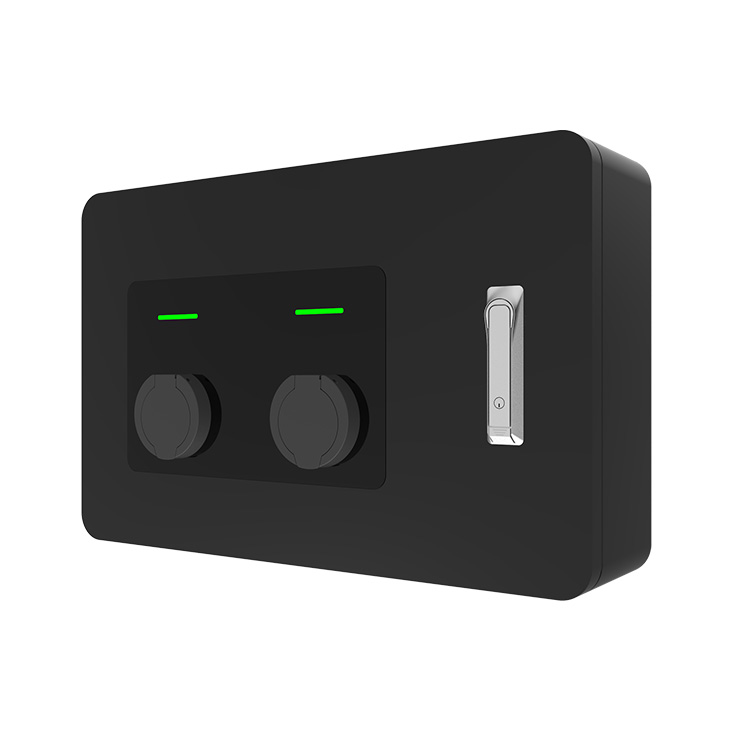

Dual EV Charger With Two Charging Points
Power rating -22KW models
Adjustable power rating – 10A, 16A & 32A
Smart Wi-Fi APP
Scheduled / off-peak charging
Solar compatible
PEN fault and residual current protection (AC30mA,DC6mA)
Dynamic load balancing (CT clamp(s) & cable(s) included)
OCPP 1.6J
Built-in LED charging status indicator
UK Smart Charge Point Regulations Compliant
including tamper security
Wi-Fi / Ethernet connectivity
Outshell IP65/Socket IP54

Send email to us

Product Detail

Pillar EV Charger

AC EV CHARGER-7.4KW

DC EV CHARGER

Product Tags

Dual EV charger with two charging points with models providing up to 22kW , these intelligent, modern yet low-cost units have
been designed to provide electric vehicle drivers with an affordable charging solution, without compromising on quality.
Compatible not only with all EVs and PHEVs on the market, but also with solar power. Smart app gives you full control of your
charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your
energy usage and much more.

ADJUSTABLE

POWER

Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A – however, if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector

SLEEK&

COMPLIANT

Offering a modern and discreet home electric vehicle charging solution, that’s compatible with all EVs and PHEVs on the market, provided that you have the corresponding cable to plug in
