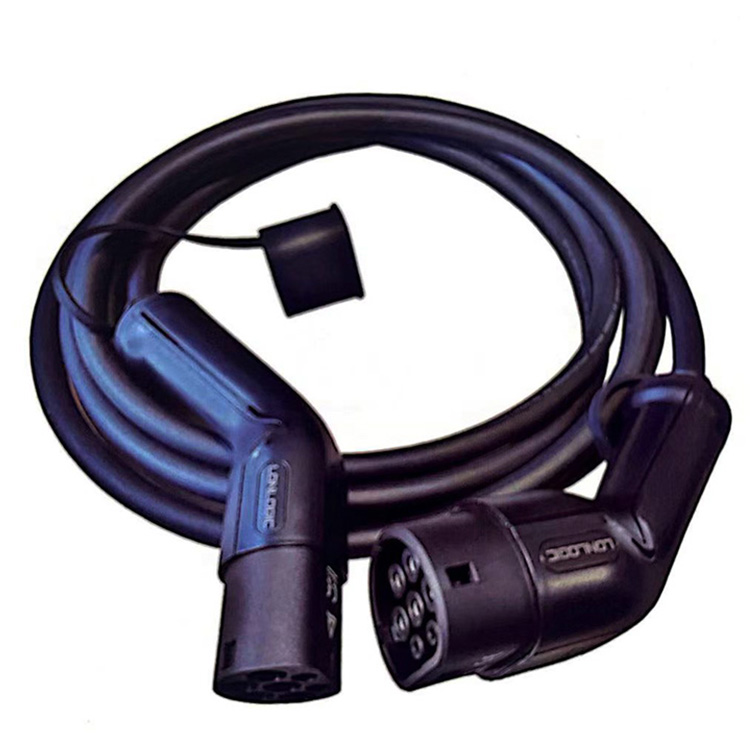

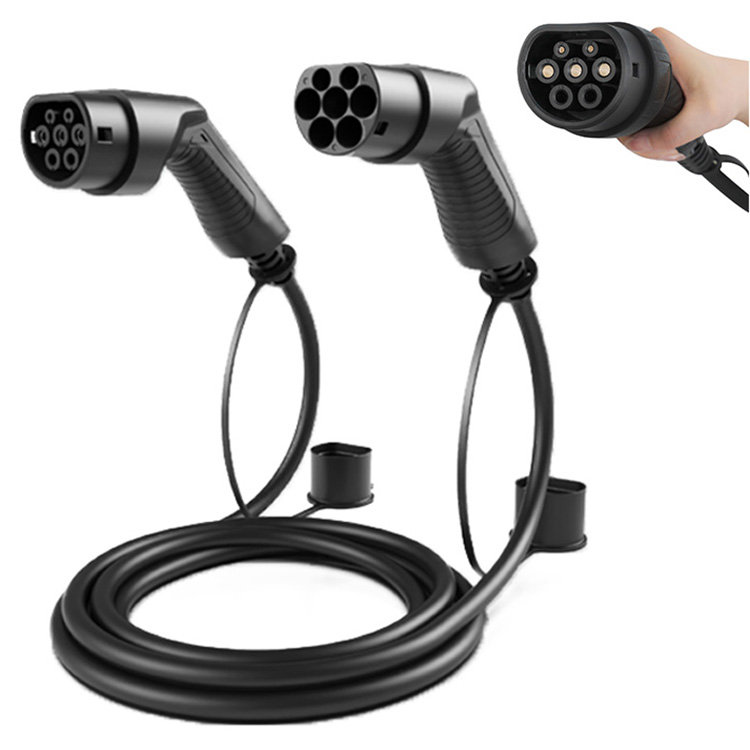

Type 2 to Type 2 EV Charging Plug 32A Three Phase with 5m Cable
The connector that plugs into the EV is typically located on the charging cord that comes with the vehicle. It is usually a specific type of connector that is designed to fit only the charging port on the vehicle. This connector is typically designed to be weather-resistant and durable, as it will be exposed to the elements when the vehicle is being charged.
Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are;

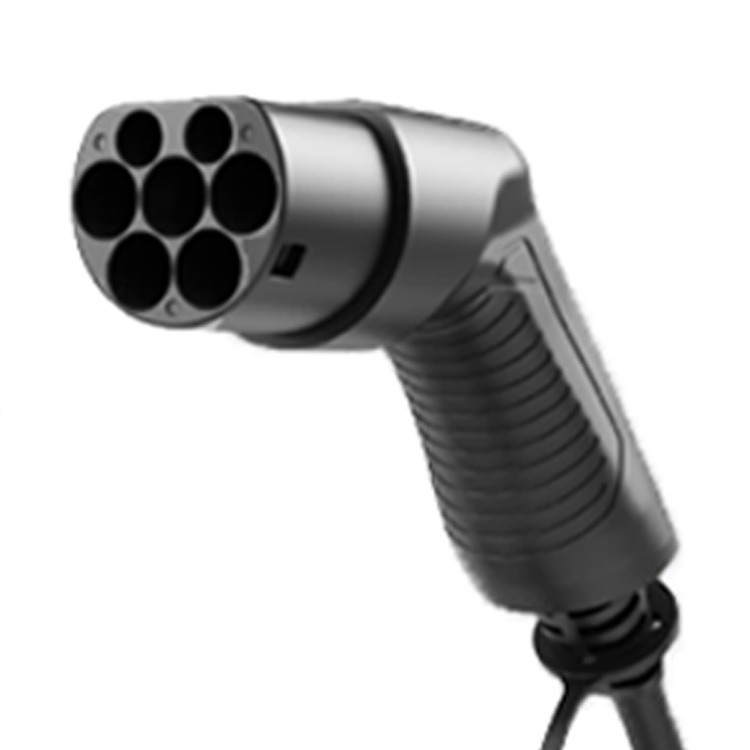

Copper Alloy PinCoated with Pure SilverProtected by Thermoplastic
| Type | XBDC-ev32-CT-3 |
| MOQ(PCS) | 100 |
| The main material | TPU |
| Plug color | White/Black/Other |
| Ptach life | >=10000 |
| Rated Current | 32A 3P |
| Fire Rating | UL94 V-0 |
| Rated Voltage | AC 220V~250V |
| Waterproof rating | IP54 |
| Resistance Voltage | 2000V |
| Operating Temperature | -30ºC~50ºC |
| Insulation resistance | >1000MΩ |
| Cable Specification | 3*6mm²+2*0.5mm² |
| Contact Resistance | Less than 0.5mΩ |
| Certification | CE |
| Cable Length | 5M /other |
| Net/gross weight (kg) | 3.61kg/4.43kg |
| Packaging | single color box |
| Packaging dimension mm | 380*380*120 |
