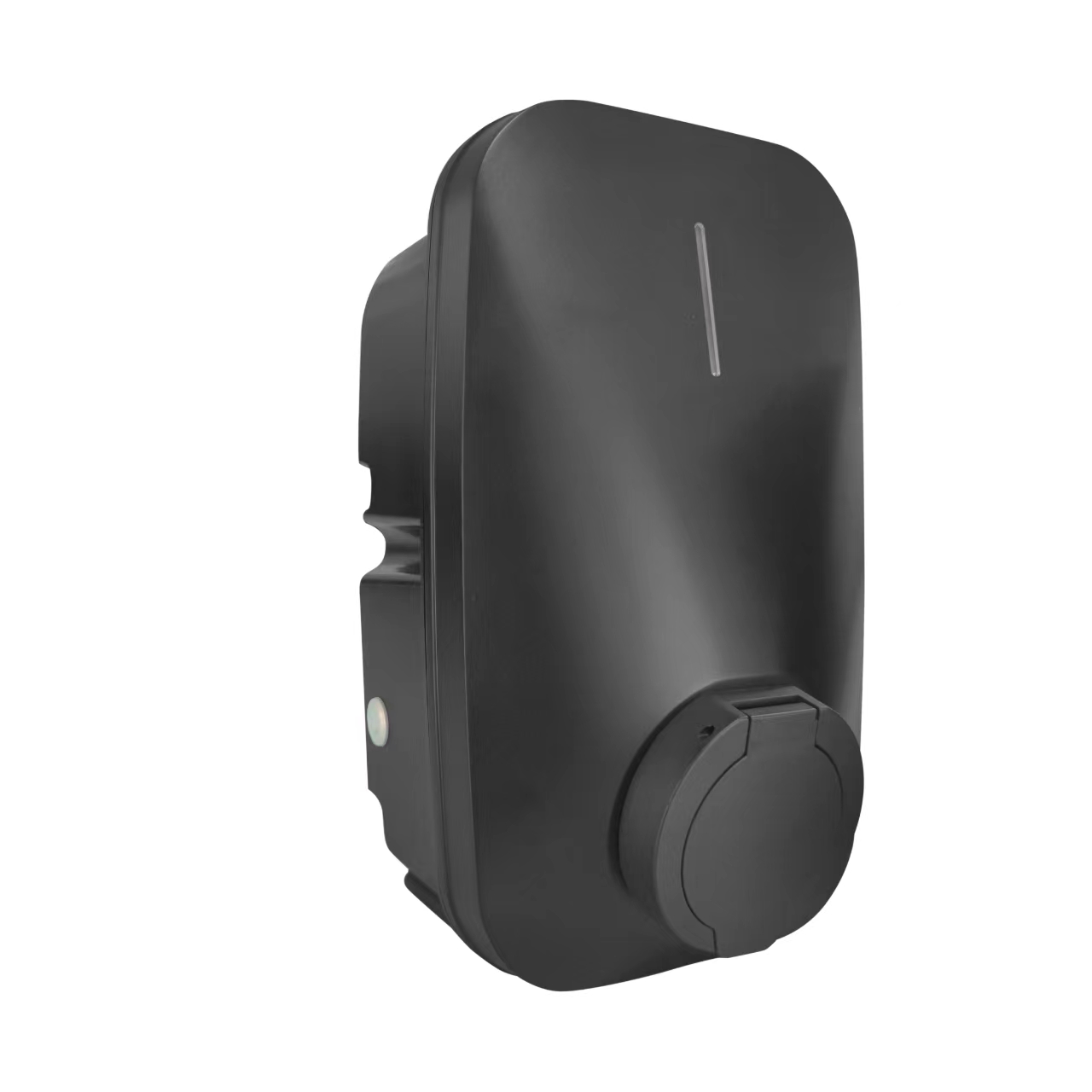

Wall box EV Car Charger Charging Station 32a EV Charger AC 7kw 11kw 22kw Type 2 EV Car Charger

Ev Charger With models providing up to7.4kW or 22kW, these intelligent, modern yet low-cost units have been designed to provide electric vehicle drivers with an affordable charging solution, without compromising on quality.

Compatible not only with all EVs and PHEVs on the market, but also with Solar power. Smart app gives you full control of your charger.

From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your energy usage and much more.

  • AC Power: 1P+N+PE/3P+N+PE
  • Rated Current: 10A/13A/16A/32A Optional
  • Type: Electric Vehicle Charger
  • Function: Smart APP&OCPP1.6
  • Product Name: EV AC Charging Station
  • Application: Car Charging Station
  • Material: ABS+PC
  • Key Words: Level 2 EV Charger
  • Charging Standard: IEC61851
  • Product Detail

    Pillar EV Charger

    AC EV CHARGER-7.4KW

    DC EV CHARGER

    Product Tags



    Universal charging Type 2 socket or Type 2 tethered lead
    Power rating – Up to 7.4kW or 22kW models
    Adjustable power rating-10A, 13A, 16A & 32A
    Smart Wi-Fi APP
    Scheduled /off-peak charging
    Solar compatible
    PEN fault and residual current protection (AC 30mA Type A, DC 6mA)
    Dynamic load balancing (CT clamp(s) & cable(s) included)
    OCPP 1.6J
    Built-in LED charging status indicator
    UK Smart Charge Point Regulations Compliant
    including tamper security
    Wi-Fi / Ethernet connectivity
    IP54 & IK08 rated9
    8

    INNOVATIVE

    Ergonomic shell design and human body design
    Optional T2S socket design
    A variety of configuration optional LCD screen, RFID

    8

    INTELLIGENT CONTROL

    Support for multiple communications (WI-FI, 4G, Ethernet)
    Meet the OCPP1.6J protocol, Tuya APP
    Home load balancing control, (remote wireless transmission
    current signal)
    Balancing load control of new solar energy

    7

    SECURITY AND CONFIDENTIALLY

    AC30mA + DC6mA leakage protection design
    Over temperature protection
    Over and under voltage protection
    Over current protection
    Input ground wire is normal monitoring protection
    Surge protection
    Meet the network security requirements

    5

    FLEXIBLE OPTIONS

    Type 2 socket or Type 2 connector
    Meet the wall installation and column landing installation
    The multi-wire installation solution meets the requirements of
    different scenarios
    RFID/APP/Plug & Charge multi-charge mode is optional



    Model
    EVC1S-3210C
    Power
    7.4KW
    Power Supply
    1P+N+PE
    Rated Voltage
    AC220~240V
    Rated Current
    32A(16A ,13A,10A adjustable)
    Output Voltage
    AC220~240V
    Maximum Current
    32A(16A ,13A,10A adjustable)
    Rated Power (MAX)
    7.4KW
    Charger Connecter
    Type 2/T2S Socket
    Cable Length
    NO
    Material
    ABS +PC
    Color
    White + Black
    Ingress Protection
    IP54
    Residual Current Protection
    AC30mA& DC6mA
    Certification
    CE/ CB/ UKCA (Dekra)
    Certification Standard
    EN IEC 61851, EN 62196
    Installation
    Wall Mounted
    Work Temperature
    -25ºC~50ºC
    Work Humidity
    3%~95%
    Work Altitude
    <2000m
    Procduction Dimension (H*W*D)mm
    330*200*151
    Package Dimension (L*W*H)mm
    390*260*210
